The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.
The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.
Dust-proof Tactile Switches RTR-8

•  Rating：12VDC 50mA
•  Travel：1.5±0.3mm
•  Life：50,000 cycles
•  Contact Resistance：100mΩ MAX Initial
•  Insulation Resistance：100mΩ min. 100VDC
•  Dielectric Strength：250VAC(50/60Hz)FOR 1MIN
•  Operating Force：120±40gf
•  Waterproof Grade：IP6X

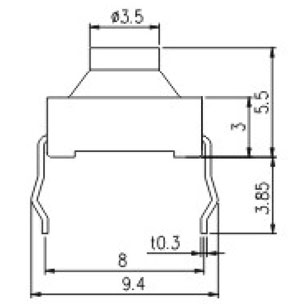

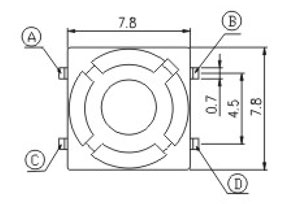

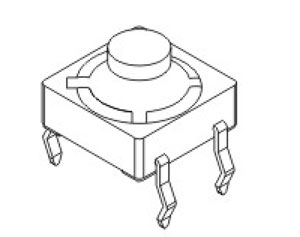

   Dust-proof Tactile Switches RTR-8 Figure Tactile Switches Structure Diagram RTR-8 Switch RTR-8 Structure Diagram     Dust-proof Switch RTR-8 Structure Diagram



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Travel Life Waterproof Grade Download
RTR-8C-G-V-B 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 120±40gf 1.5±0.3mm 50,000 cycles IP6X NULL
RTR-8T-G-V-B 12VDC 50mA 100mΩ MAX Initial 100mΩ min. 100VDC 250VAC(50/60Hz)FOR 1MIN 120±40gf 1.5±0.3mm 50,000 cycles IP6X NULL
