Home ? Product Center ? Other ? Switch ? Illuminated Switch ? R2915(A) ?

The LED button switch is a composite button switch of the button switch with LED. The switch function has an LED indicator inside, which can accurately indicate the on/off state of the switch, and is very convenient for the user to find the switch position in the dark. Its opening and closing operations are all in the same position, and the rocker automatically returns to a flat state when the hand is released, which has a longer life.

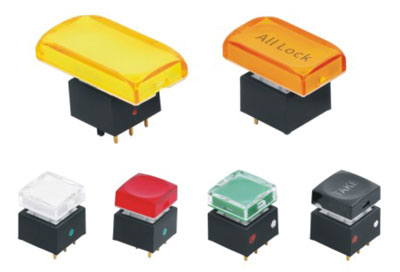

Illuminated Push Button Switches R2915(A)

•  Rating：0.5A,100VAC;0.2A,250VAC;0.5A,25VDC
•  Contact Resistance：Silver contact:50mΩ MAX
•  Insulation Resistance：500VFC,100MΩ MIN
•  Operating Temperature：-40℃ ~85℃
•  Operating Force：200±100gf.(1P2T)
•  Operating Life：200,000 cycles

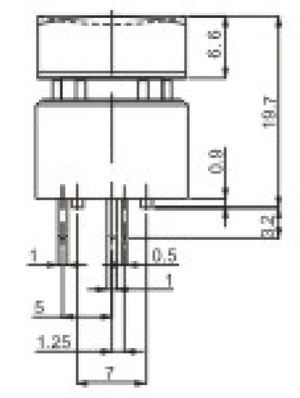

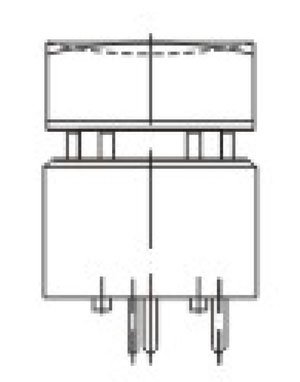

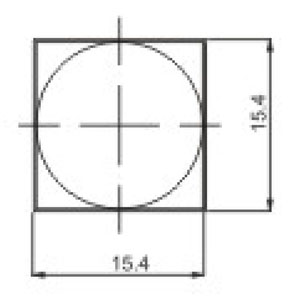

  Illuminated Push Button Switches R2915(A)Figure Illuminated Push Button Switches R2915(A) Structure Diagram           Switch R2915(A) Structure Diagra          R2915(A) Structure Diagra



Part Number Rating Contact Resistance Insulation Resistance Operating Temperature Operating Force Operating Life Download
R2915-3M-W-RGBT-15 0.5A,100VAC;0.2A,250VAC;0.5A,25VDC Silver contact:50mΩ MAX 500VFC,100MΩ MIN -40℃ ~85℃ 200±100gf.(1P2T) 200,000 cycles NULL
R2915-3M-W-GT-15 0.5A,100VAC;0.2A,250VAC;0.5A,25VDC Silver contact:50mΩ MAX 500VFC,100MΩ MIN -40℃ ~85℃ 200±100gf.(1P2T) 200,000 cycles NULL
R2915-3M-W-WT-15 0.5A,100VAC;0.2A,250VAC;0.5A,25VDC Silver contact:50mΩ MAX 500VFC,100MΩ MIN -40℃ ~85℃ 200±100gf.(1P2T) 200,000 cycles NULL
R2915A-3M-W-□-T-26 0.5A,100VAC;0.2A,250VAC;0.5A,25VDC Silver contact:50mΩ MAX 500VFC,100MΩ MIN -40℃ ~85℃ 200±100gf.(1P2T) 200,000 cycles NULL
R2915A-3M-W-RGBT-34 0.5A,100VAC;0.2A,250VAC;0.5A,25VDC Silver contact:50mΩ MAX 500VFC,100MΩ MIN -40℃ ~85℃ 200±100gf.(1P2T) 200,000 cycles NULL
R2915A-3M-W-□T-15 0.5A,100VAC;0.2A,250VAC;0.5A,25VDC Silver contact:50mΩ MAX 500VFC,100MΩ MIN -40℃ ~85℃ 200±100gf.(1P2T) 200,000 cycles NULL
R2915A-3M-W-UT-15 0.5A,100VAC;0.2A,250VAC;0.5A,25VDC Silver contact:50mΩ MAX 500VFC,100MΩ MIN -40℃ ~85℃ 200±100gf.(1P2T) 200,000 cycles NULL
R2915AP-3M-W-UT-15 0.5A,100VAC;0.2A,250VAC;0.5A,25VDC Silver contact:50mΩ MAX 500VFC,100MΩ MIN -40℃ ~85℃ 200±100gf.(1P2T) 200,000 cycles NULL
Open
